Air handling units for efficient supply and exhaust ventilation in flats, houses, cottages and other buildings.
EPP casing with its aerodynamic shape and excellent insulation characteristics.
The units are available with a counter-flow polystyrene heat exchanger or an enthalpy counter-flow heat exchanger.
Available for installation with S21 controller.
The Reneo D units are equipped with a bypass, which can be opened if there is a need to cool down the ventilated area with cool intake air.
The units are designed for suspended ceiling mounting, floor mounting, vertical or horizontal wall mounting.

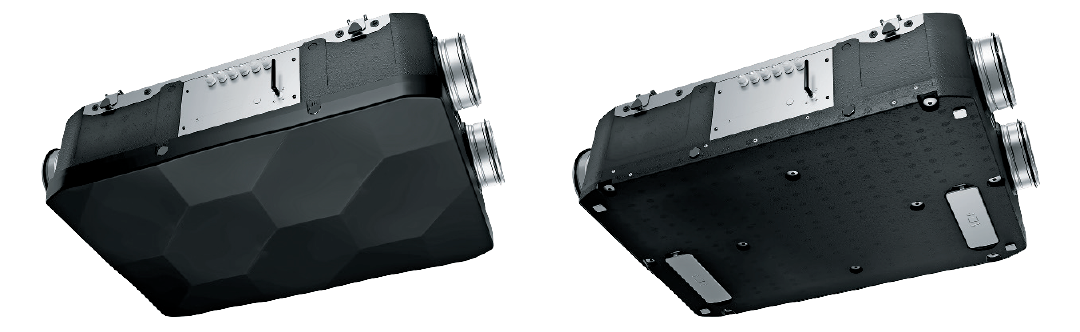

The Reneo D 181 / 241 units have flat service hatch design, suitable for decorative panel installation (delivered separately).

EPP casing

Blauberg Reneo D is made from a modern material – extruded polypropylene (ЕРР). The material is very light, which allows to decrease the total weight of the system and ensures easy installation. ЕРР resists corrosion, preserving the product’s long-term high efficiency. It also has a low thermal conductivity, allowing to decrease heat losses in the ventilation system. This ensures more effective system operation and reduces air conditioning and heating expenses.

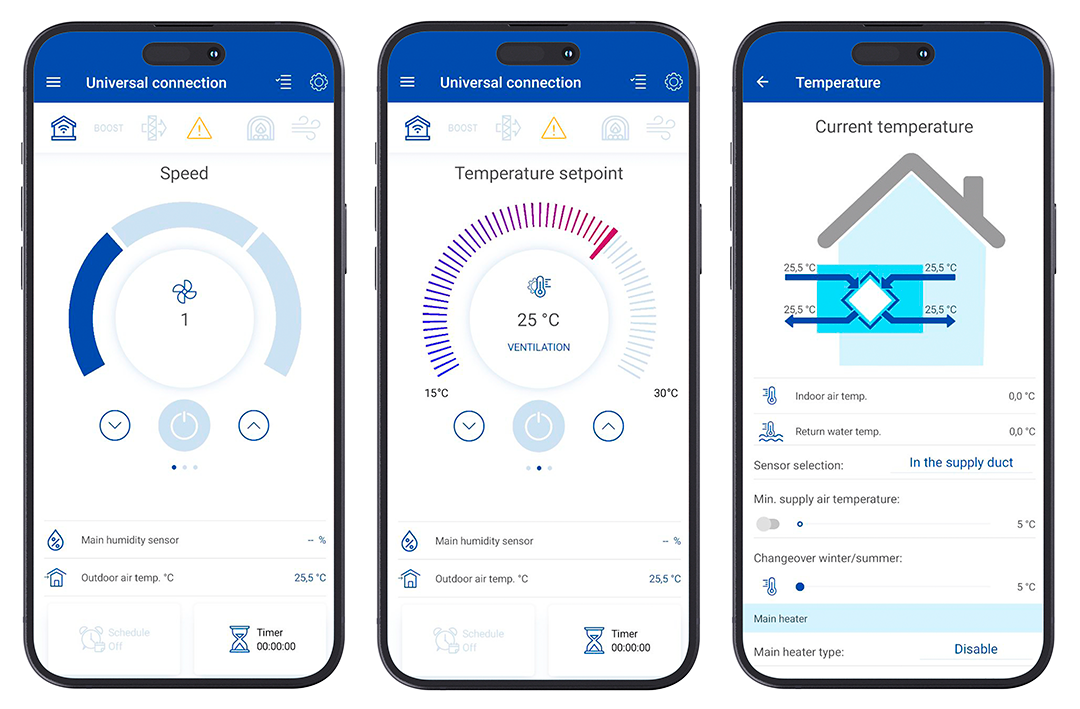

All functions in your smartphone

Reneo – it’s not just ventilation, it’s a real climate station in your home. With the S21 controller you can control all functions and parameters via the mobile app (the controller is not included in the delivery set).

AND EVEN MORE

Just say «Hello Google» and test, control and run Reneo in English, German, Swedish, Norwegian, Danish, Polish, Dutch, French, Spanish*.

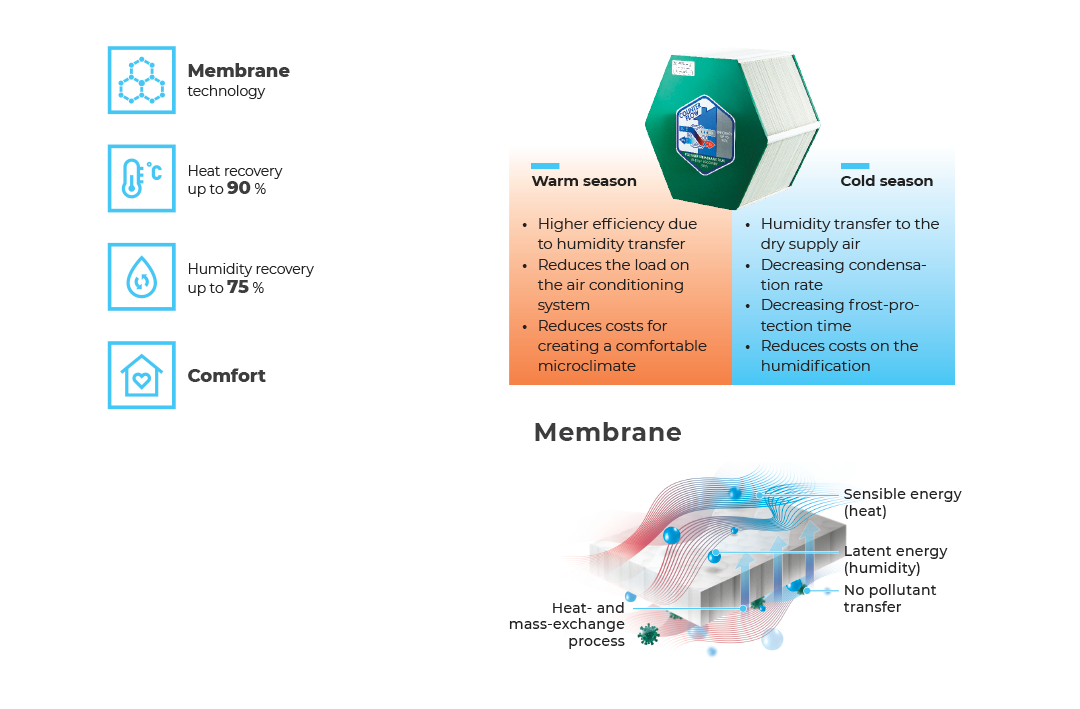

Enthalpy heat exchanger

If air humidity management is just as important for you as temperature management, then enthalpy heat exchanger is your best choice (The Reneo D...-E unit).

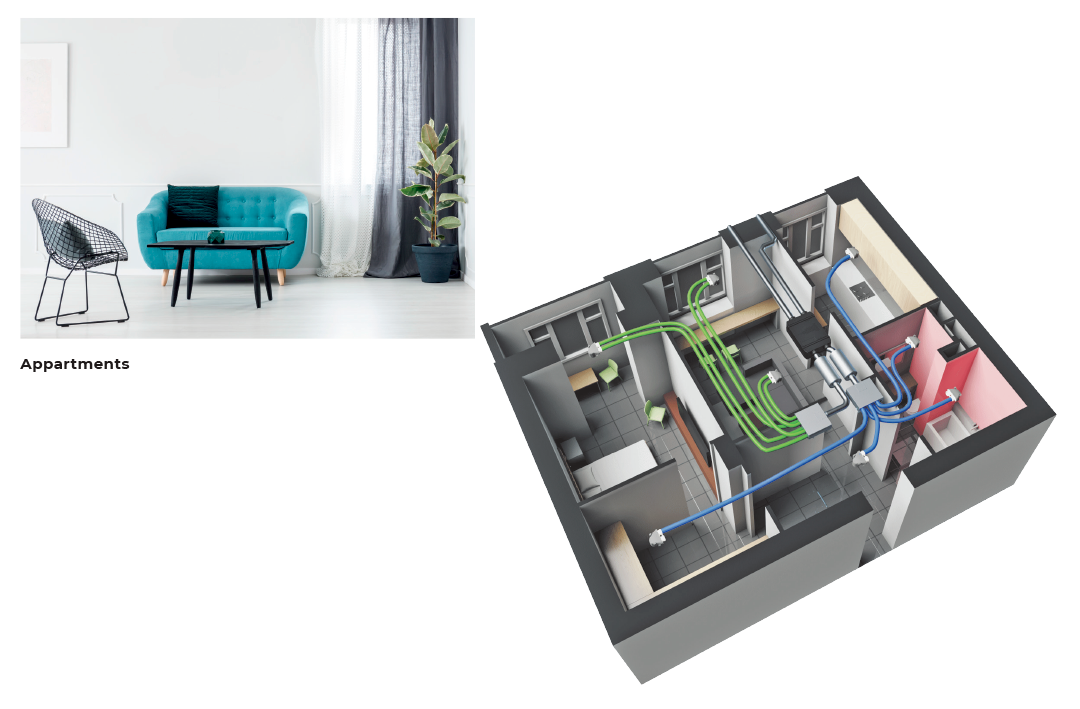

Application

Lineup Blauberg Reneo D	Maximum airflow, m³/h	Service side	Control system	Preheater	Reheater	BMS protocol
Reneo D 180 R S21	181	Right	S21	Optional	Optional	ModBus
Reneo D 180 L S21	181	Left	S21	Optional	Optional	ModBus
Reneo D 180 R S14	181	Right	S14			N/A
Reneo D 180 L S14	181	Left	S14			N/A
Reneo D 180-E R S21	181	Right	S21	Optional	Optional	ModBus
Reneo D 180-E L S21	181	Left	S21	Optional	Optional	ModBus
Reneo D 180-E R S14	181	Right	S14			N/A
Reneo D 180-E L S14	181	Left	S14			N/A
Reneo D 240 R S21	310	Right	S21	Optional	Optional	ModBus
Reneo D 240 L S21	310	Left	S21	Optional	Optional	ModBus
Reneo D 240 R S14	310	Right	S14			N/A
Reneo D 240 L S14	310	Left	S14			N/A
Reneo D 240-E R S21	310	Right	S21	Optional	Optional	ModBus
Reneo D 240-E L S21	310	Left	S21	Optional	Optional	ModBus
Reneo D 240-E R S14	310	Right	S14			N/A
Reneo D 240-E L S14	310	Left	S14			N/A
Reneo D 181 R S21	181	Right	S21	Optional	Optional	ModBus
Reneo D 181 L S21	181	Left	S21	Optional	Optional	ModBus
Reneo D 181 R S14	181	Right	S14			N/A
Reneo D 181 L S14	181	Left	S14			N/A
Reneo D 181-E R S21	181	Right	S21	Optional	Optional	ModBus
Reneo D 181-E L S21	181	Left	S21	Optional	Optional	ModBus
Reneo D 181-E R S14	181	Right	S14			N/A
Reneo D 181-E L S14	181	Left	S14			N/A
Reneo D 241 R S21	310	Right	S21	Optional	Optional	ModBus
Reneo D 241 L S21	310	Left	S21	Optional	Optional	ModBus
Reneo D 241 R S14	310	Right	S14			N/A
Reneo D 241 L S14	310	Left	S14			N/A
Reneo D 241-E R S21	310	Right	S21	Optional	Optional	ModBus
Reneo D 241-E L S21	310	Left	S21	Optional	Optional	ModBus
Reneo D 241-E R S14	310	Right	S14			N/A
Reneo D 241-E L S14	310	Left	S14			N/A
