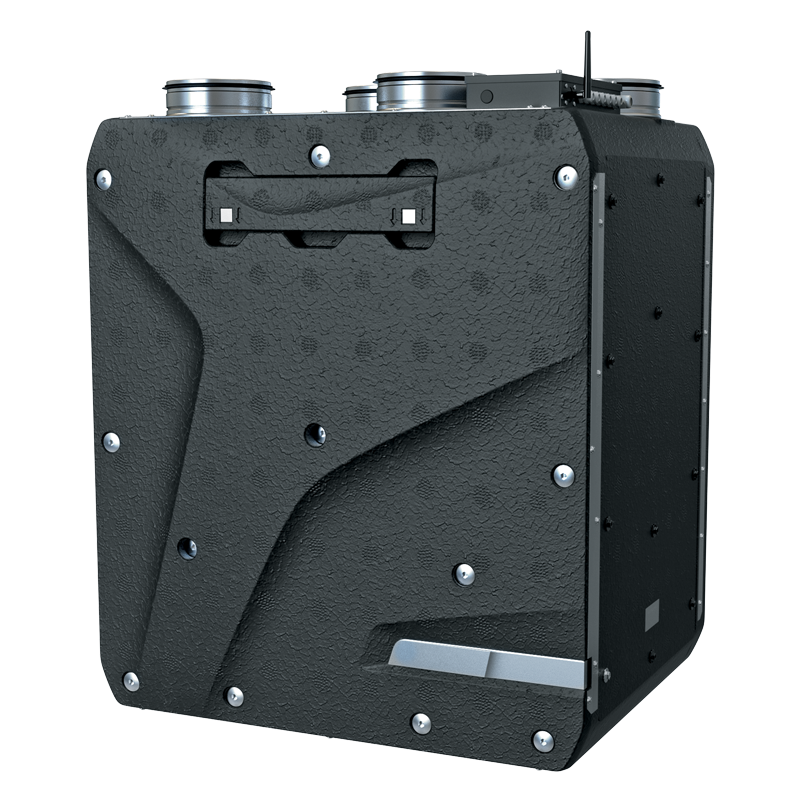

Blauberg Reneo S 380-E L S21 CF

Heat and energy recovery air handling units

	Unit of measurement	Reneo S 380-E L S21 CF
Phases	-	1
Maximum supply voltage	V	230
Minimum supply voltage	V	230
Power supply frequency	Hz	50/60
Maximum airflow	m³/h	390
Heat recovery efficiency, max	%	83
Heat exchanger type	-	Counter flow
Heat exchanger material	-	Enthalpy
Weight	kg	26
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-25
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP22
Ambient air humidity max	%	60
Ingress protection rating of the drive	-	IP44

Trademark	Blauberg
Model	Reneo S 380-E L S21 CF
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-78.6	A+	-40.8	A	-16.6	E
Type of ventilation unit	Bidirectional
Type of drive installed	Variable speed
Type of heat recovery system	Recuperative
Thermal efficiency of heat recovery (%)	81
Maximum flow rate (m³/h)	390
Electric power input (W)	194
Reference flow rate (m³/s)	0.075
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.286
Control typology	Local demand control
Maximum internal leakage rates (%)	2.7
Maximum external leakage rates (%)	2.7
Sound power level (dB(A))	46
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	734		197		152
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	8817		4507		2038
