Blauberg Reneo-Fit D 100-E R S21

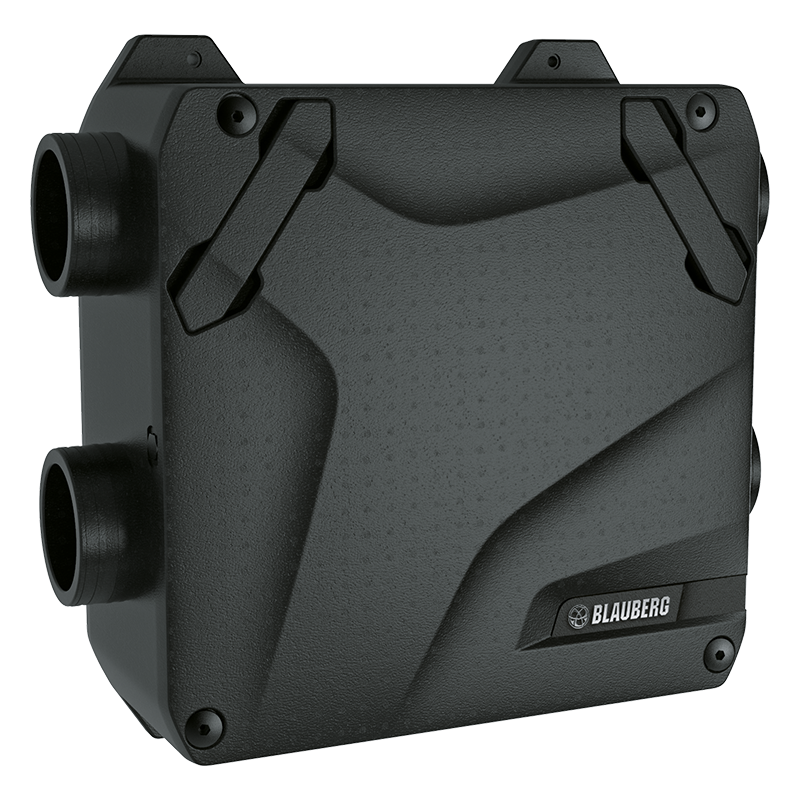

Suspended heat and energy recovery air handling units

	Unit of measurement	Reneo-Fit D 100-E R S21
Phases	-	1
Maximum supply voltage	V	230
Minimum supply voltage	V	230
Power supply frequency	Hz	50/60
Maximum airflow	m³/h	130
Heat recovery efficiency, max	%	88
Heat exchanger type	-	Counter flow
Heat exchanger material	-	Enthalpy
Weight	kg	8
Transported air temperature (max)	°С	40
Transported air temperature (min)	°С	-23
Ambient air temperature min	°С	1
Ambient air temperature max	°С	40
Ingress protection rating	-	IP22
Ingress protection rating of the drive	-	IP44
Ambient air humidity max	%	60

Trademark	Blauberg
Model	Reneo-Fit D 100-E R S21
Specific energy consumption (SEC) (kWh/(m²/a))	Cold		Average		Warm
	-78.6	A+	-41.1	A	-16.9	E
Type of ventilation unit	Bidirectional
Type of drive installed	Variable speed
Type of heat recovery system	Recuperative
Thermal efficiency of heat recovery (%)	80
Maximum flow rate (m³/h)	90
Electric power input (W)	37
Reference flow rate (m³/s)	0.018
Reference pressure difference (Pa)	50
Specific power input (SPI) (W/(m³/h))	0.254
Control typology	Local demand control
Maximum internal leakage rates (%)	2.8
Maximum external leakage rates (%)	3
Sound power level (dB(A))	45
The annual electricity consumption (AEC) (kWh/a)	Cold		Average		Warm
	716.4		179.4		134.4
The annual heating saved (AHS) (kWh/a)	Cold		Average		Warm
	8776		4486		2029

Datasheet

Reneo-Fit D 100 / 120 - data sheet

1.54 Mb

Manual

Reneo-Fit D 100/120(-E) S14 - user's manual (B224EN-03)

2.22 Mb

Manual

S14 software "Zero Service Software"

18.32 Mb

Manual

Reneo-Fit D 100/120(-E) S21 - user's manual (B320EN-01)

2.33 Mb

BIM/CAD-models

Reneo-Fit D 100 / 120 - BIM model

1.05 Mb


Reneo-Fit D 100-E R S21 - image 1

816 Kb

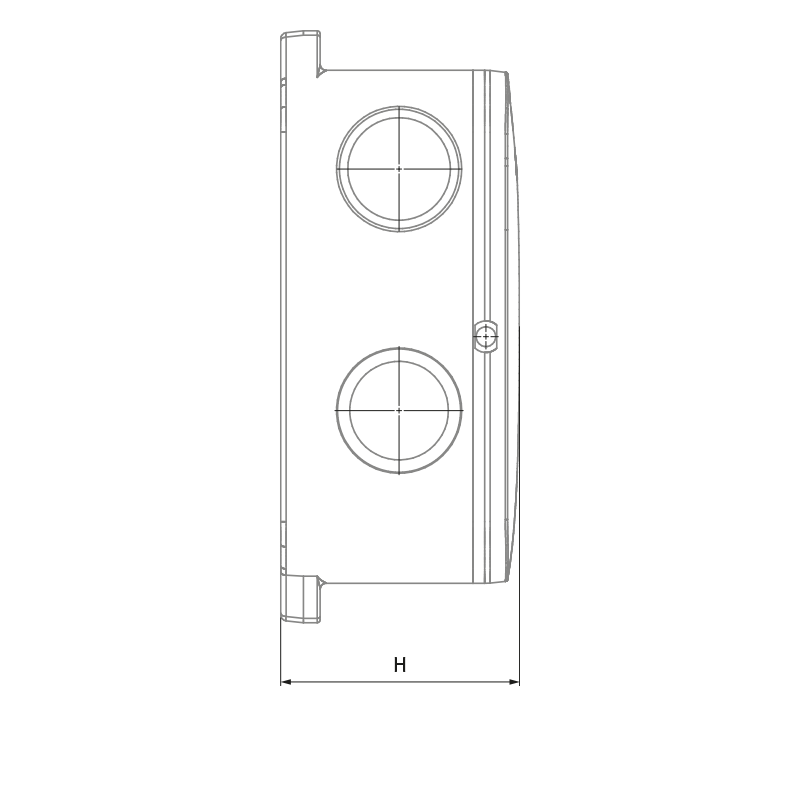

H	L	L1	W	W1
242	530	630	520	600
