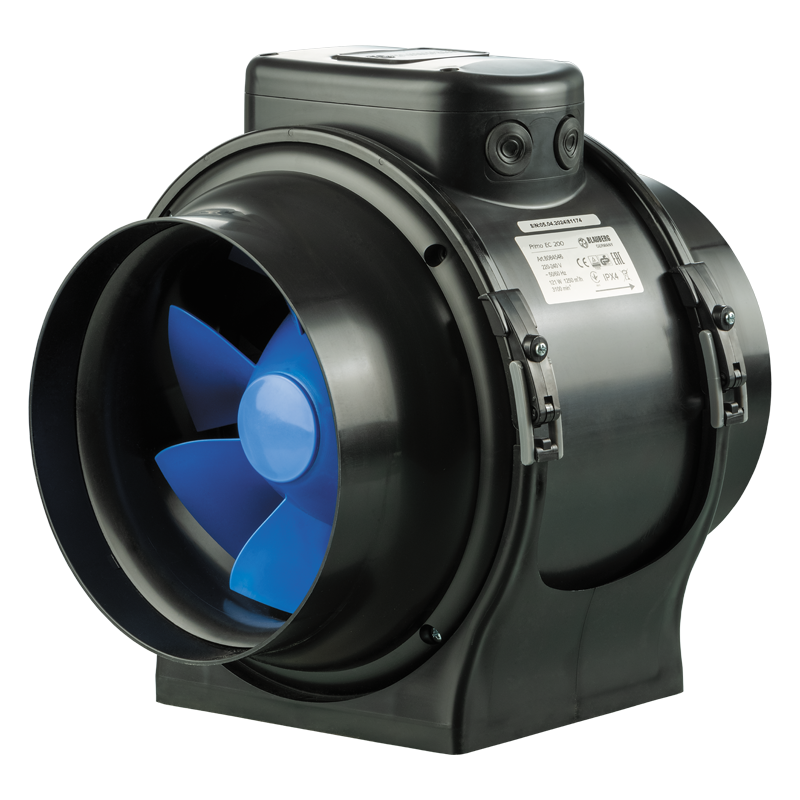

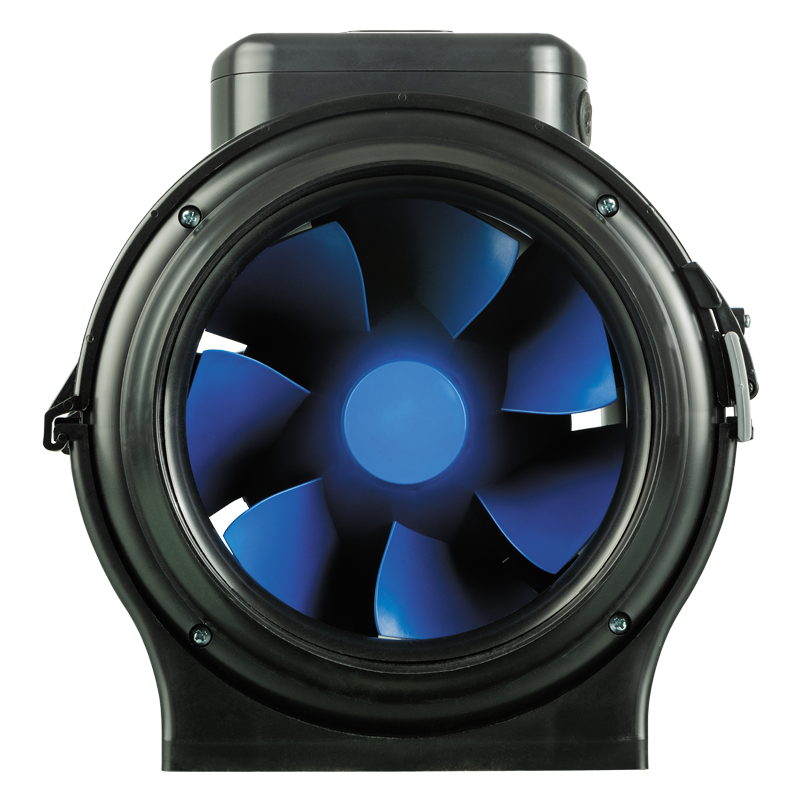

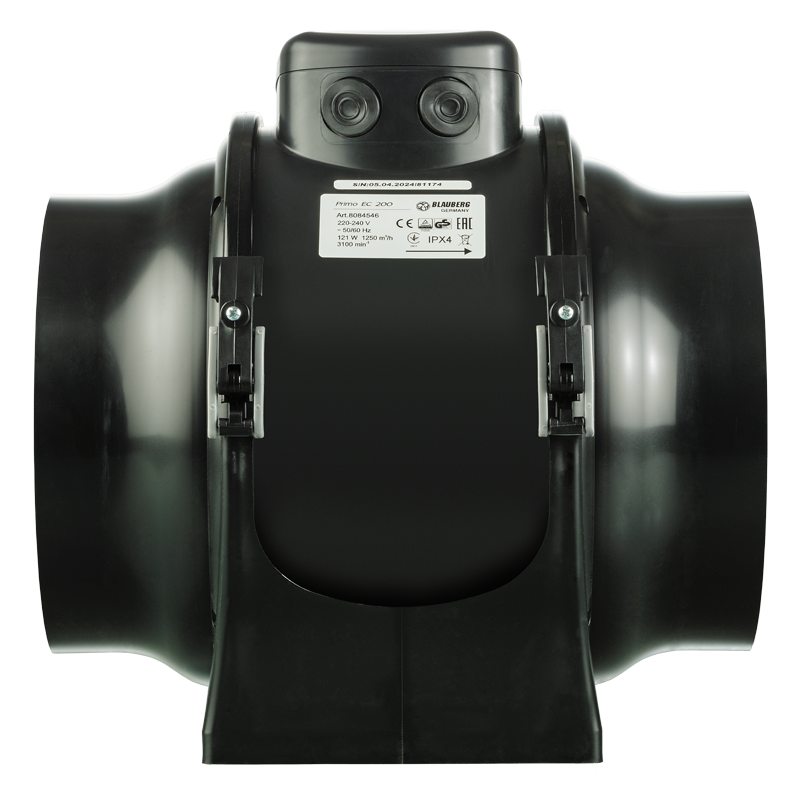

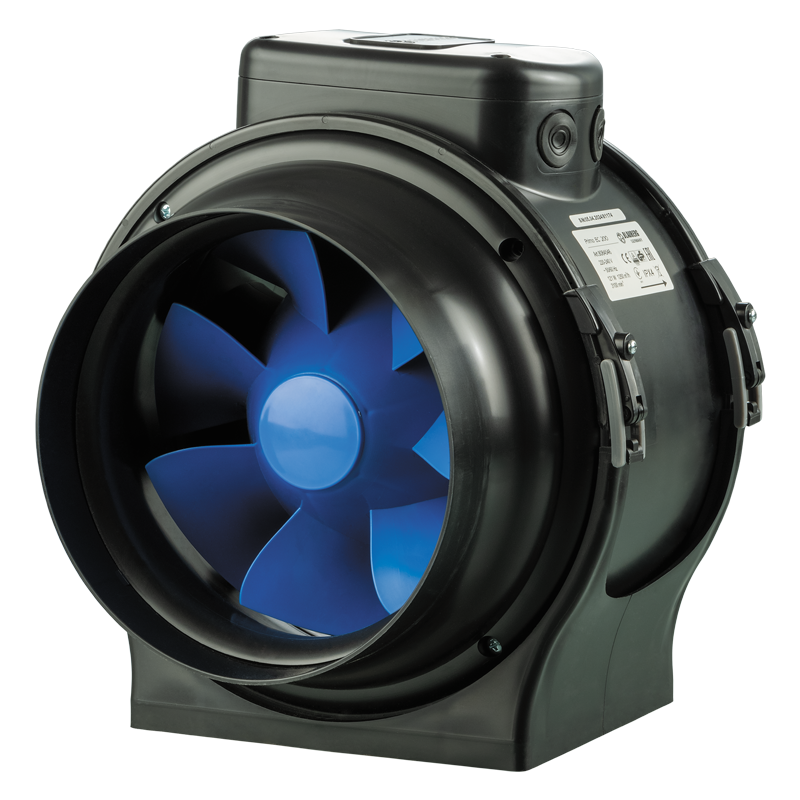

/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Primo / Primo 200| Unit of measurement | Primo 200 | |||
| Speed | - | 1 | 2 | 3 |
| Phases | - | 1 | ||
| Minimum supply voltage | V | 230 | ||
| Maximum supply voltage | V | 230 | ||
| Power supply frequency | Hz | 50 | ||
| Maximum airflow | m³/h | 752 | 978 | 1140 |
| Weight | kg | 4.2 | ||
| Transported air temperature (max) | °С | 55 | ||
| Transported air temperature (min) | °С | -25 | ||
| Ingress protection rating | - | IPX4 | ||
| Ingress protection rating of the drive | - | IP20 | ||
| Impeller material | - | Plastic | ||
| Trademark | Blauberg |
| Model | Primo 200 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | Integrated VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 183 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 33.3 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.108 |
| Sound power level (dB(A)) | 70 |

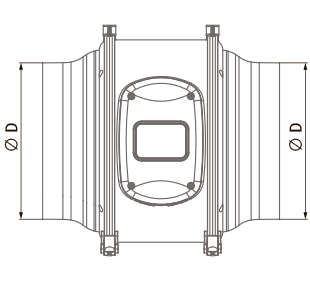

| A | B | C | Ø D |
|---|---|---|---|
| 308 | 302 | 293 | 200 |
| Name | Photo | Description |
|---|---|---|
| Blauberg K 200 |
|
Clamp for round flexible ducts |
