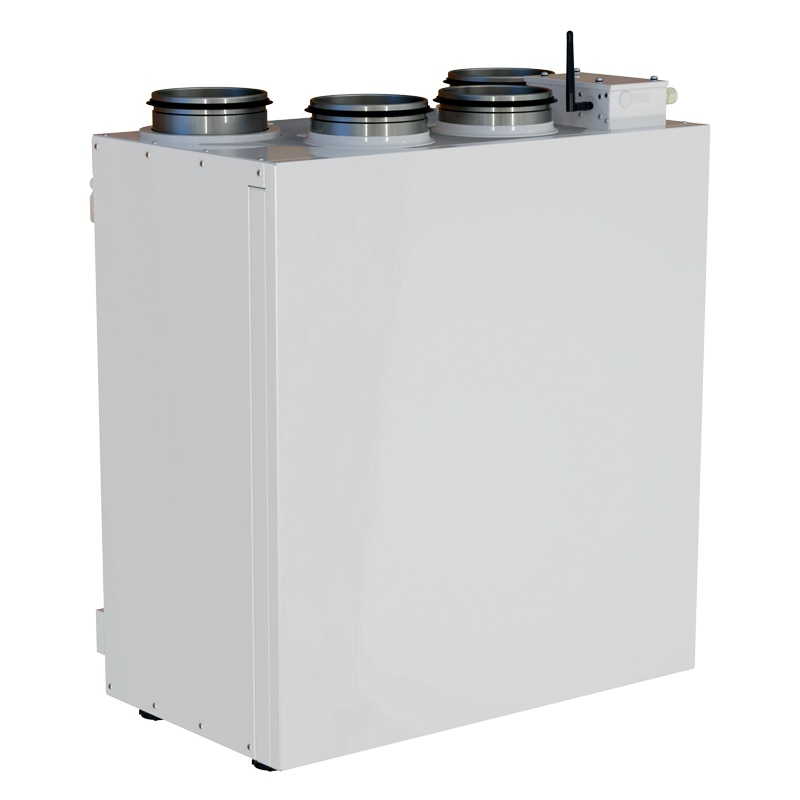

/ Product catalogue / Air handling units / Rotary residential AHU / Vertical Units / KOMFORT Roto EC S 202 / KOMFORT Roto EC SE 202 R S21
| Unit of measurement | KOMFORT Roto EC SE 202 R S21 | |
| Phases | - | 1 |
| Minimum supply voltage | V | 230 |
| Maximum supply voltage | V | 230 |
| Power supply frequency | Hz | 50/60 |
| Power of electrical reheater | W | 700 |
| Maximum airflow | m³/h | 250 |
| Heat recovery efficiency, max | % | 93 |
| Heat exchanger type | - | Condensation rotary |
| Heat exchanger material | - | Aluminum |
| Weight | kg | 46 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ambient air humidity max | % | 60 |
| Ingress protection rating of the drive | - | IP44 |

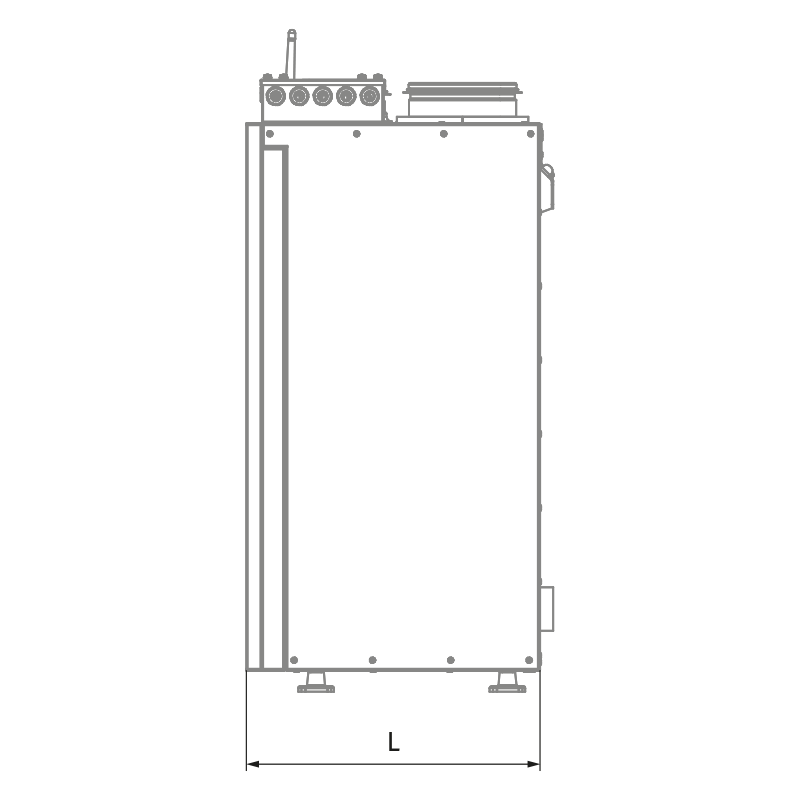

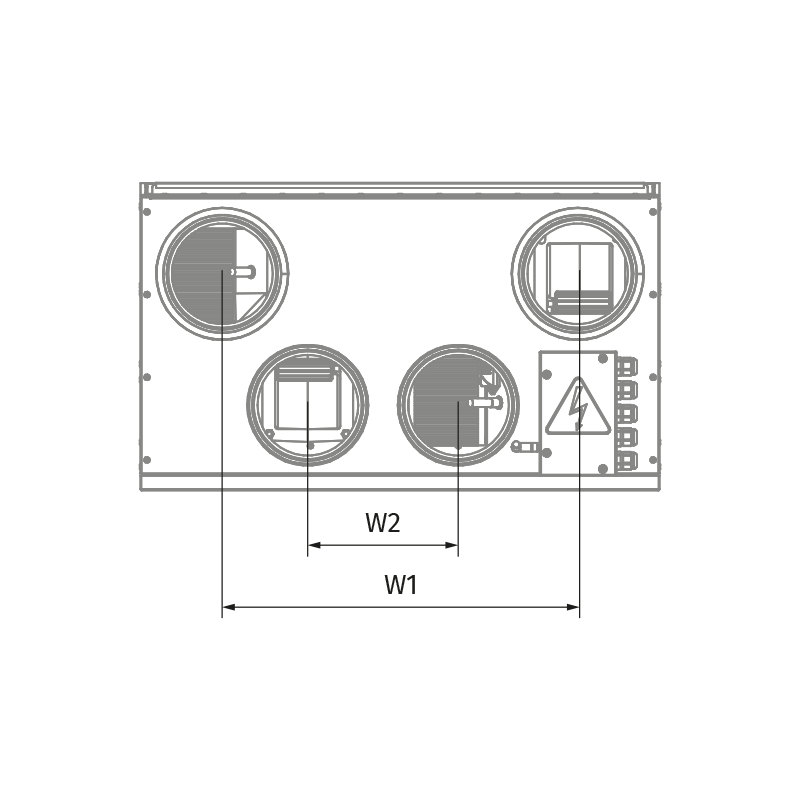

| H | L | W | W1 | W2 |
|---|---|---|---|---|
| 630 | 338 | 596 | 408 | 173 |
| Name | Photo | Description |
|---|---|---|
| Blauberg S25 |
|
LCD control panel |
| Blauberg S22 |
|
Control panels |
| Blauberg S22 Wi-Fi |
|
Control panels |
| Name | Photo | Description |
|---|---|---|
| Blauberg CD-1 |
|
CO2 sensors |
| Name | Photo | Description |
|---|---|---|
| Blauberg FS2 |
|
Humidity sensor |
| Name | Photo | Description |
|---|---|---|
| Blauberg Belimo TF230 |
|
Electric actuators |
| Name | Photo | Description |
|---|---|---|

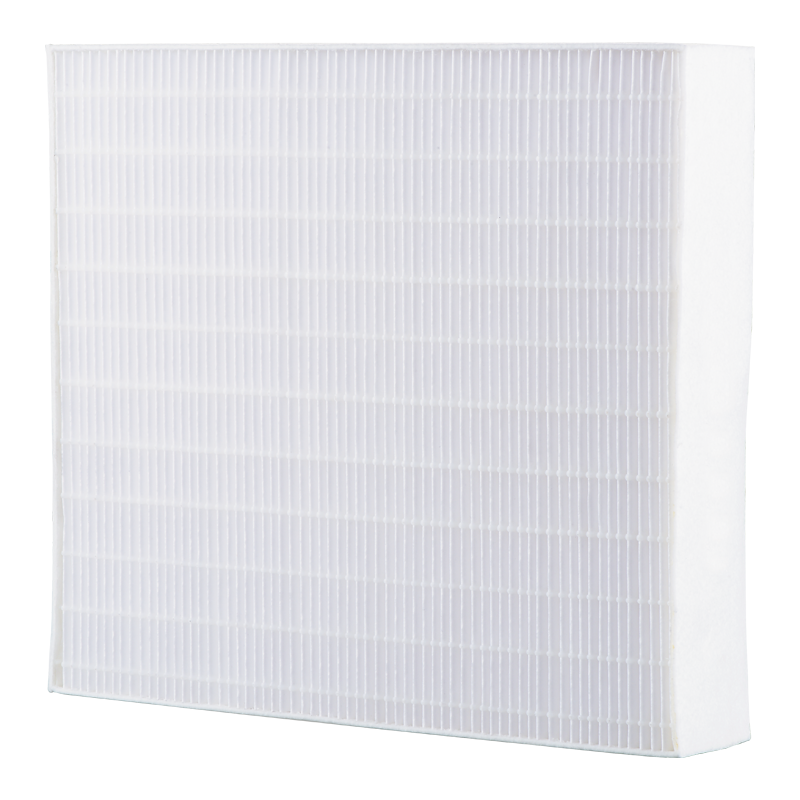

| Blauberg FP 261x86x48 ePM1 60% F7 |
|
F7 panel filter |

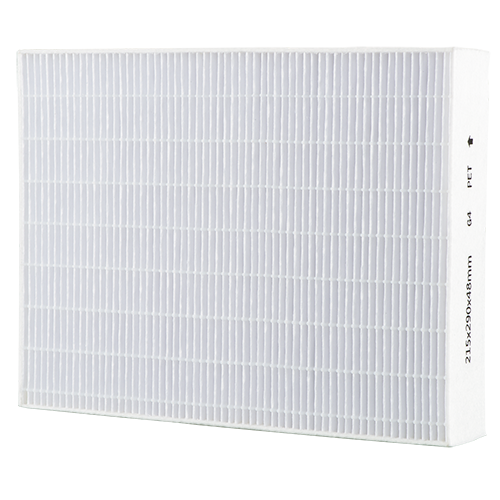

| Blauberg FP 261x86x48 Coarse 90% G4 |
|
G4 panel filter |
