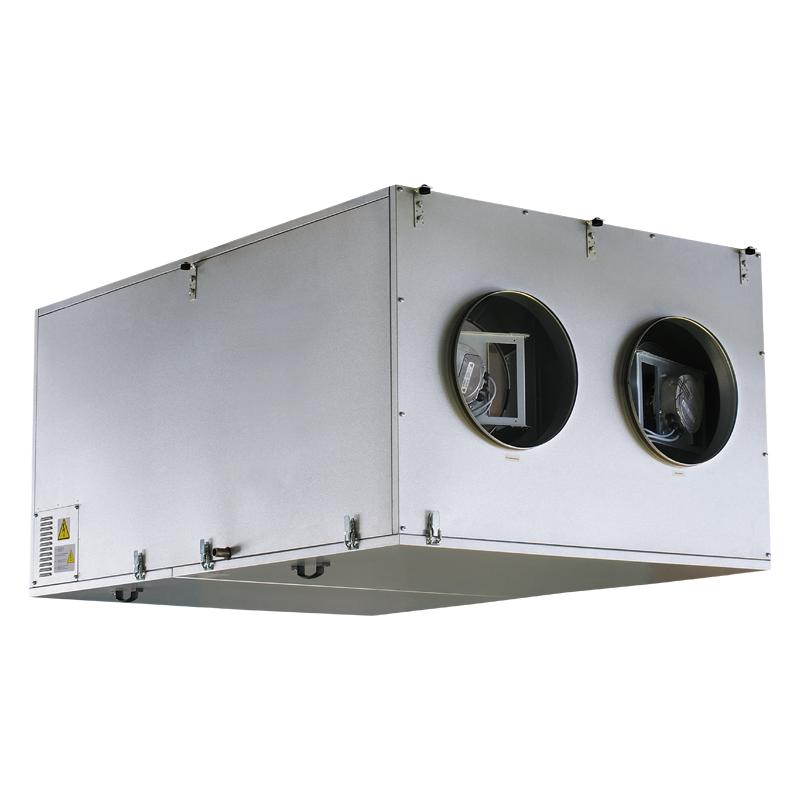

/ Product catalogue / Air handling units / Counterflow commercial AHU / Suspended Units / KOMFORT EC DBE / KOMFORT EC DBE 2000 S21
| Unit of measurement | KOMFORT EC DBE 2000 S21 | |
| Phases | - | 3 |
| Minimum supply voltage | V | 400 |
| Maximum supply voltage | V | 400 |
| Power supply frequency | Hz | 50/60 |
| Power of electrical reheater | W | 15000 |
| Maximum airflow | m³/h | 2100 |
| Heat recovery efficiency, max | % | 67 |
| Heat exchanger type | - | Cross flow |
| Heat exchanger material | - | Aluminum |
| Weight | kg | 140 |
| Transported air temperature (max) | °С | 40 |
| Transported air temperature (min) | °С | -25 |
| Ambient air temperature min | °С | 1 |
| Ambient air temperature max | °С | 40 |
| Ingress protection rating | - | IP22 |
| Ingress protection rating of the drive | - | IP44 |
| Ambient air humidity max | % | 60 |

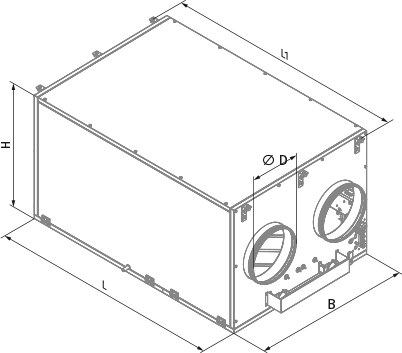

| Ø D | B | H | L | L1 |
|---|---|---|---|---|
| 315 | 950 | 762 | 1400 | 1452 |
| Name | Photo | Description |
|---|---|---|

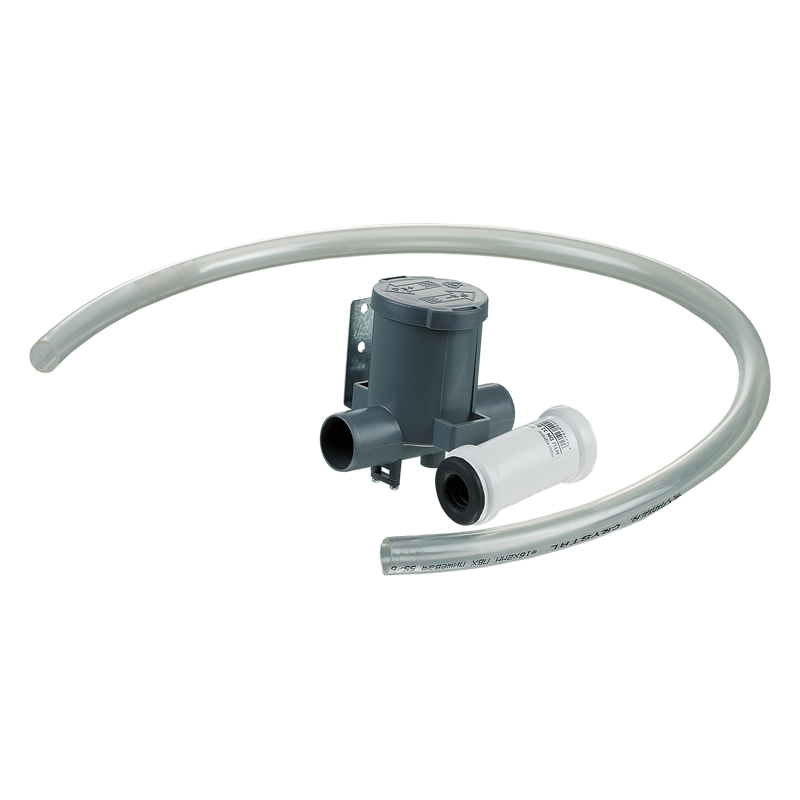

| Blauberg SFK 20x32 |
|
Hydraulic syphon for condensate drainage |
| Name | Photo | Description |
|---|---|---|

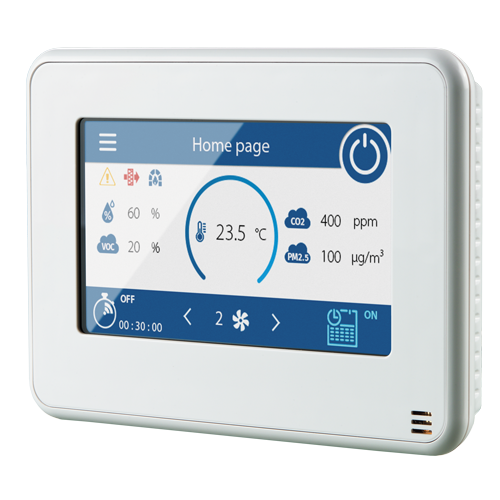

| Blauberg S25 |
|
LCD control panel |

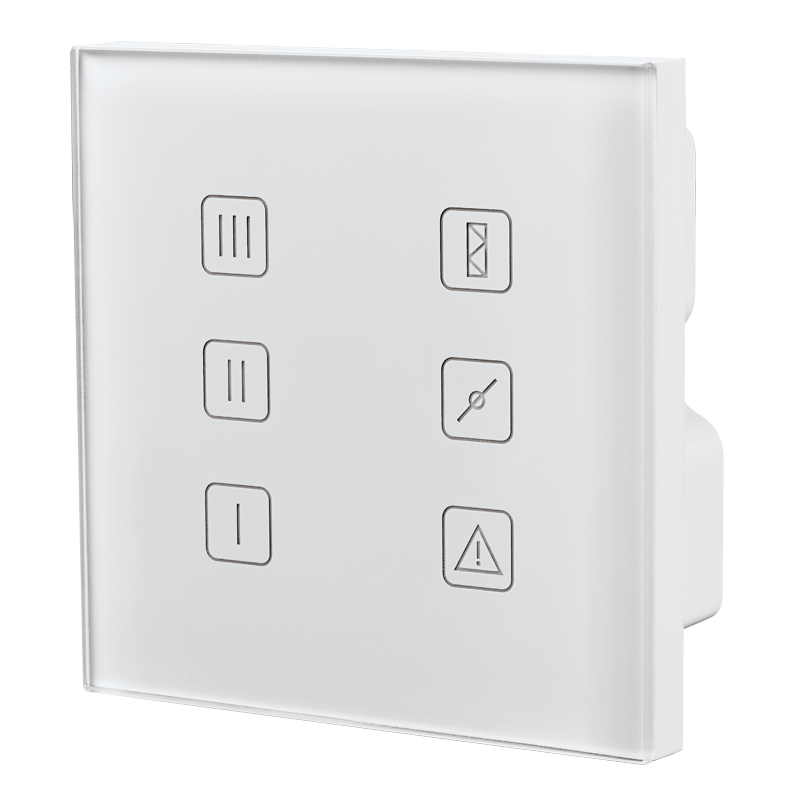

| Blauberg S22 |
|
Control panels |

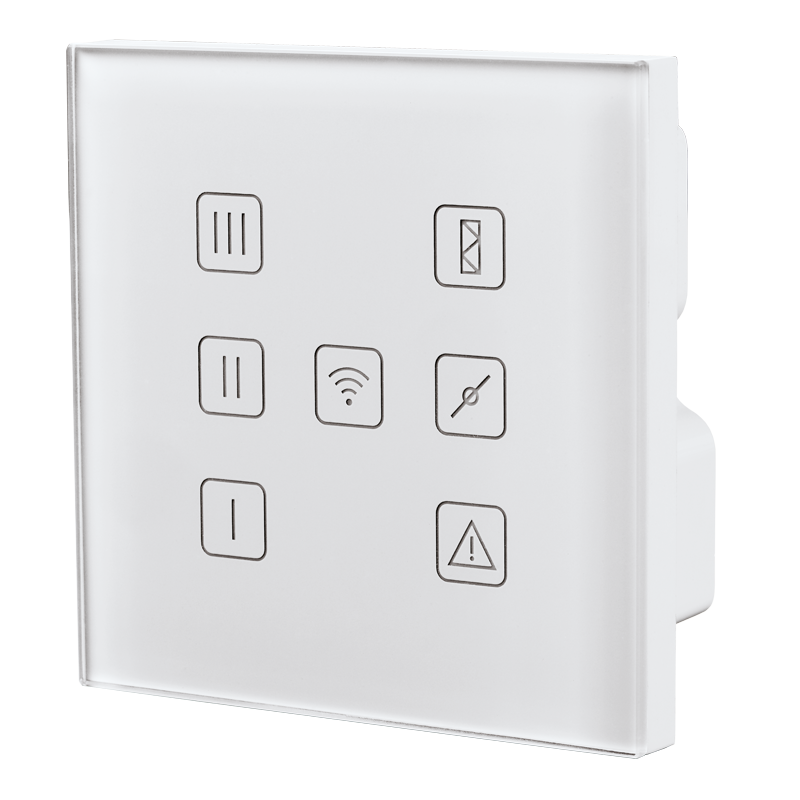

| Blauberg S22 Wi-Fi |
|
Control panels |
| Name | Photo | Description |
|---|---|---|

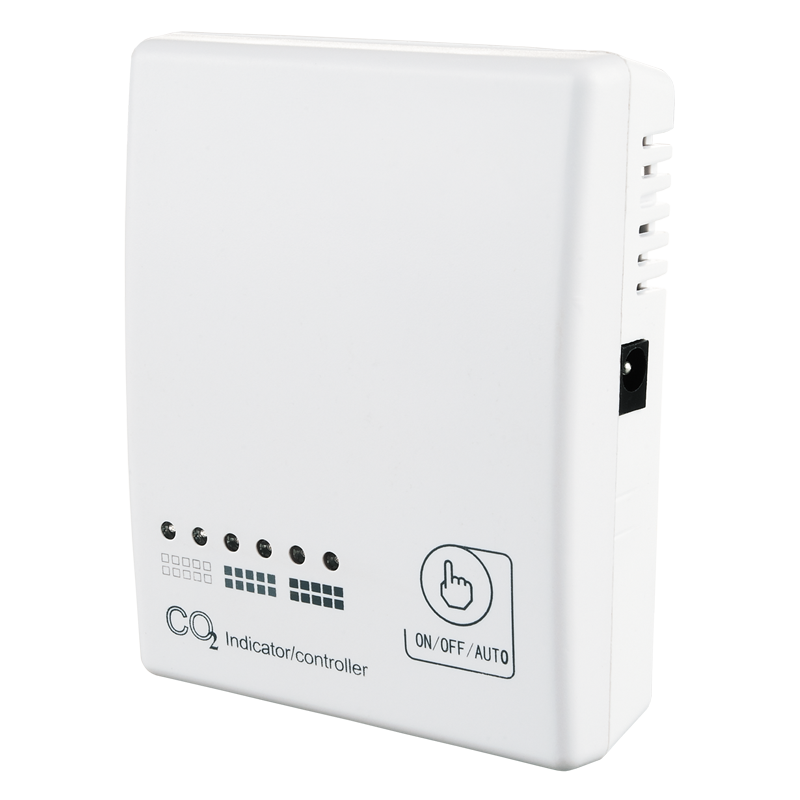

| Blauberg CD-1 |
|
CO2 sensors |

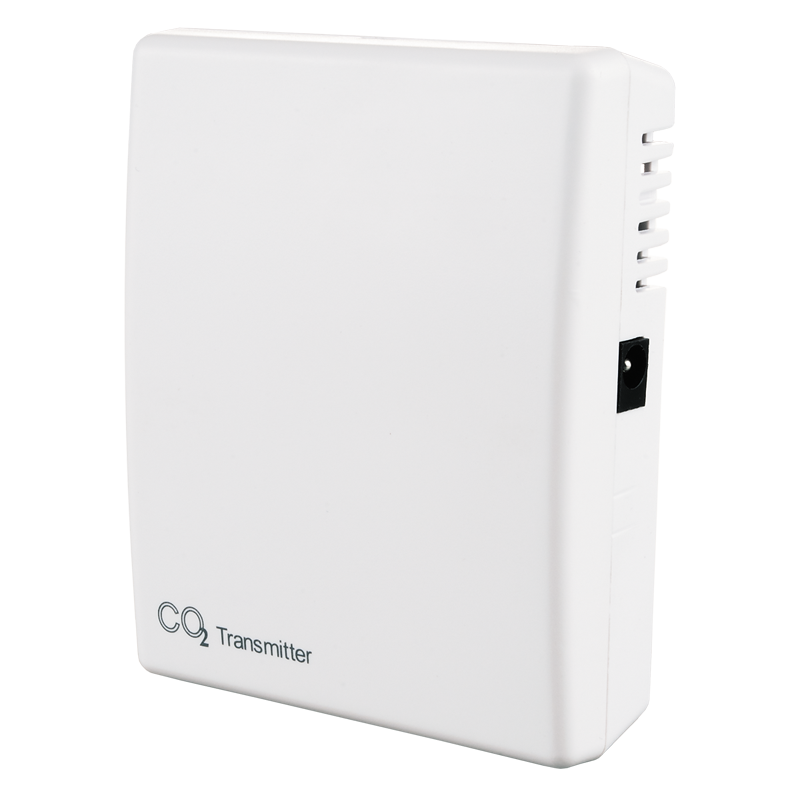

| Blauberg CD-2 |
|
CO2 sensors |
| Name | Photo | Description |
|---|---|---|

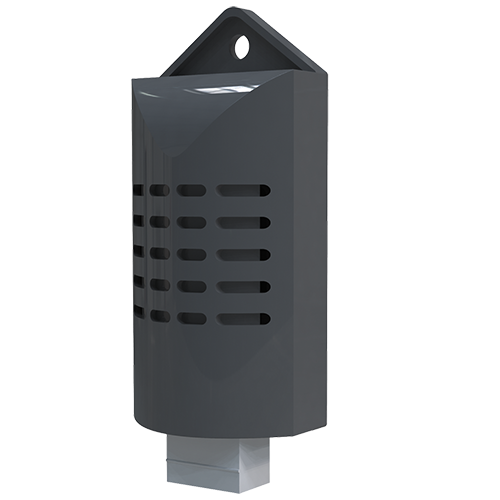

| Blauberg FS2 |
|
Humidity sensor |
| Name | Photo | Description |
|---|---|---|

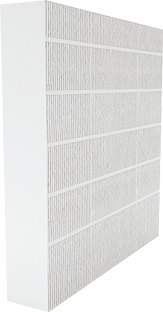

| Blauberg FP 708x480x48 G4 |
|
G4 panel filter |
| Name | Photo | Description |
|---|---|---|

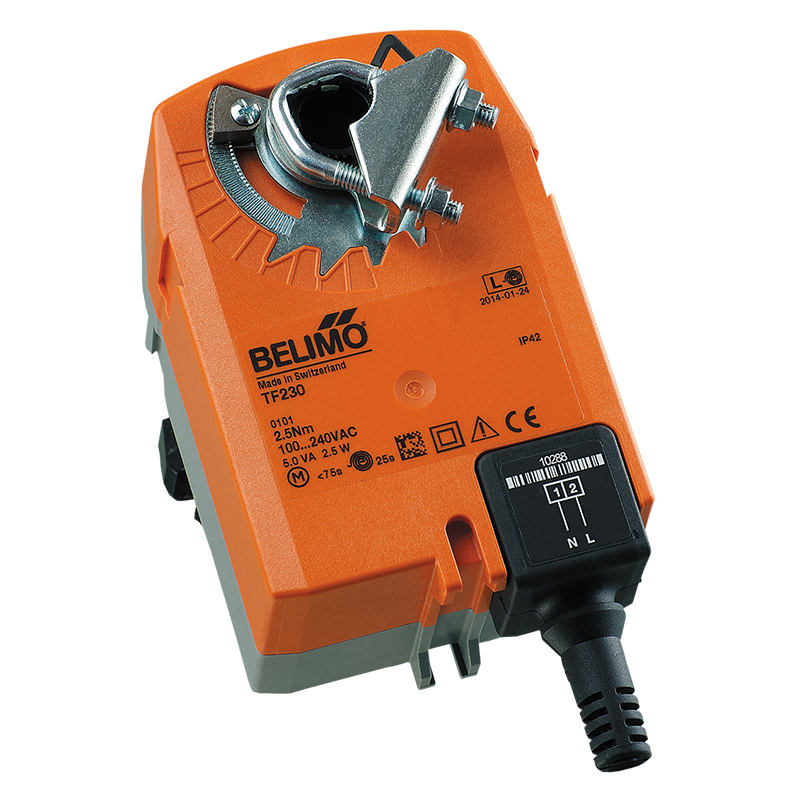

| Blauberg Belimo TF230 |
|
Electric actuators |
