/ Product catalogue / Commercial and industrial ventilation / Inline fans / For round duct / Iso-Mix / Iso-Mix 250| Unit of measurement | Iso-Mix 250 | ||
| Speed | - | 1 | 2 |
| Phases | - | 1 | |
| Minimum supply voltage | V | 230 | |
| Maximum supply voltage | V | 230 | |
| Power supply frequency | Hz | 50/60 | |
| Maximum airflow | m³/h | 1110 | 1400 |
| Weight | kg | 15 | |
| Transported air temperature (max) | °С | 60 | |
| Ingress protection rating | - | IPX4 | |
| Ingress protection rating of the drive | - | IPX4 | |
| Impeller material | - | Plastic | |
| Trademark | Blauberg |
| Model | Iso-Mix 250 |
| Type of ventilation unit | Unidirectional |
| Type of drive installed | External MSD or VSD |
| Type of heat recovery system | None |
| Nominal external pressure (Pa) | 236 |
| Maximum external leakage rates (%) | 2.7 |
| Static efficiency (%) | 30.9 |
| Declared typology | NRVU UVU |
| Effective electric power input (kW) | 0.174 |
| Sound power level (dB(A)) | 56 |

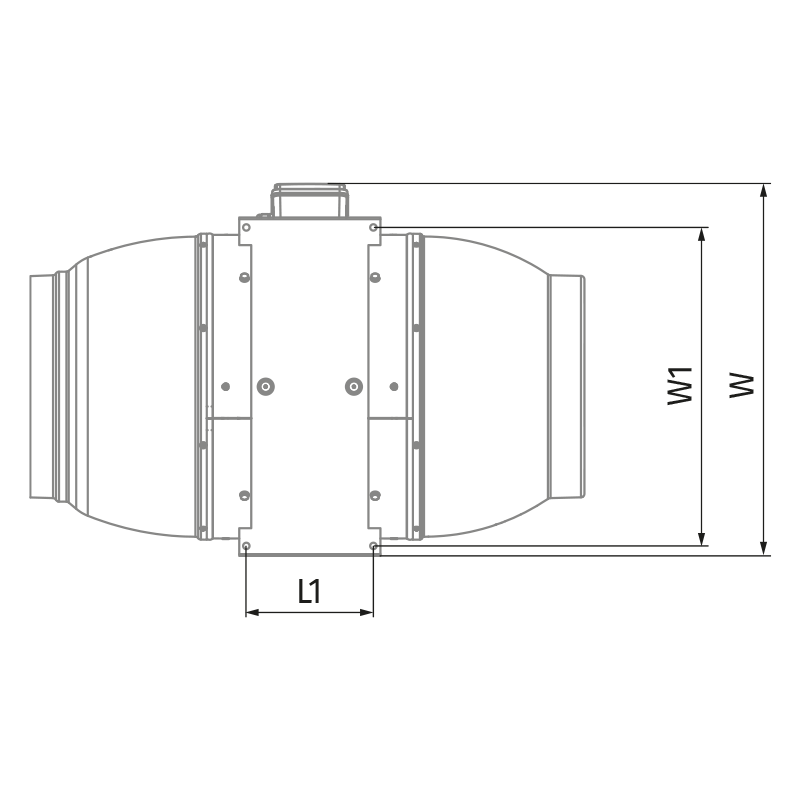

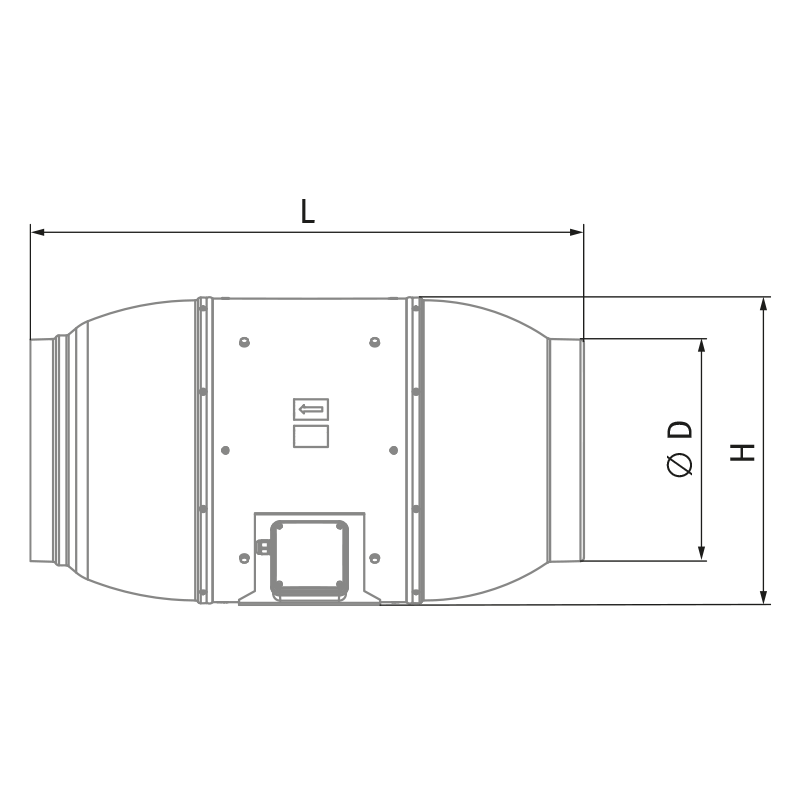

| Ø D | H | L | L1 | W | W1 |
|---|---|---|---|---|---|
| 248 | 360 | 665 | 130 | 445 | 370 |
