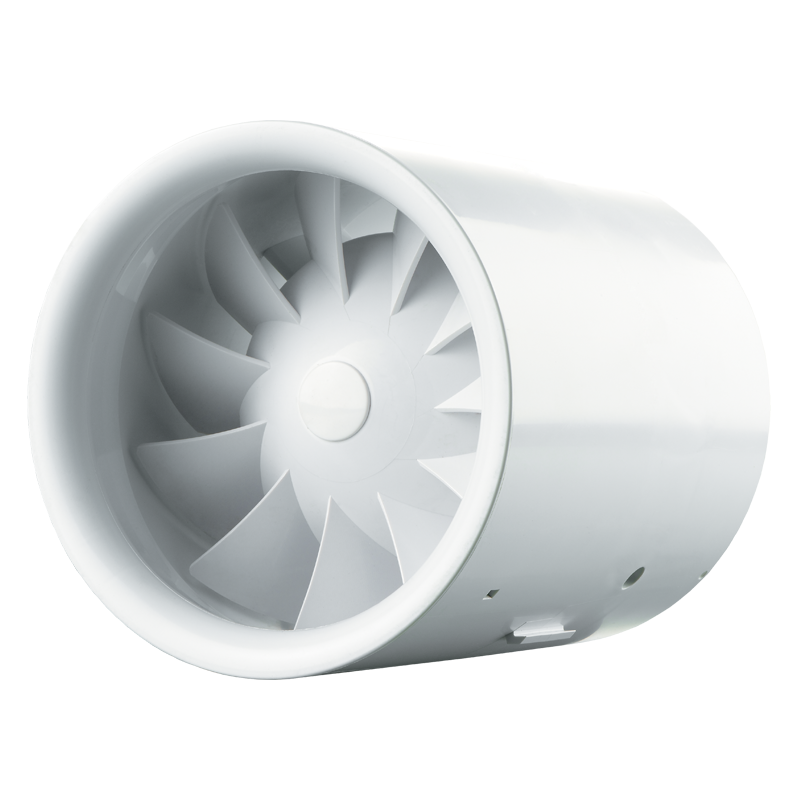

/ Product catalogue / Domestic ventilation / Residential inline fans / Inline Fans / Ducto / Ducto Power Plus 150
| Unit of measurement | Ducto Power Plus 150 | ||
| Speed | - | 1 | 2 |
| Minimum supply voltage | V | 220 | |
| Maximum supply voltage | V | 240 | |
| Power supply frequency | Hz | 50 | |
| Maximum airflow | m³/h | 285 | 375 |
| Weight | kg | 1.3 | |
| Ambient air temperature min | °С | 1 | |
| Ambient air temperature max | °С | 40 | |
| Ingress protection rating | - | IPX4 | |
| Impeller material | - | Plastic | |
| Trademark | Blauberg | |||||
| Model | Ducto Power Plus 150 | |||||
| Specific energy consumption (SEC) (kWh/(m²/a)) | Cold | Average | Warm | |||
| -31.1 | B | -14.7 | E | -5.3 | F | |
| Type of ventilation unit | Unidirectional | |||||
| Type of drive installed | 2-speed | |||||
| Type of heat recovery system | None | |||||
| Maximum flow rate (m³/h) | 375 | |||||
| Electric power input (W) | 25 | |||||
| Reference flow rate (m³/s) | 0.079 | |||||
| Specific power input (SPI) (W/(m³/h)) | 0.077 | |||||
| Control typology | Manual control | |||||
| Maximum external leakage rates (%) | 2.7 | |||||
| Declared typology | RVU UVU | |||||
| Sound power level (dB(A)) | 58 | |||||
| The annual electricity consumption (AEC) (kWh/a) | Cold | Average | Warm | |||
| 97 | 97 | 97 | ||||
| The annual heating saved (AHS) (kWh/a) | Cold | Average | Warm | |||
| 3355 | 1715 | 776 | ||||
| L | ØD |
|---|---|
| 181.5 | 150 |
